Rotor housing cracked Significant cracks at exhaust port. There is another noticeable crack above the exhaust port. Rotor gear teeth damaged. |
  |

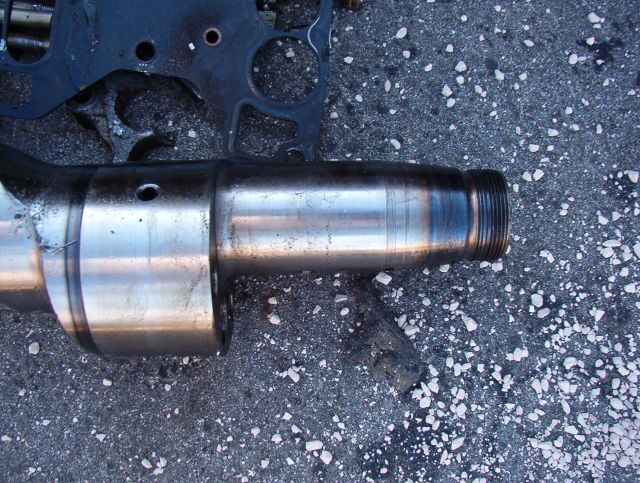

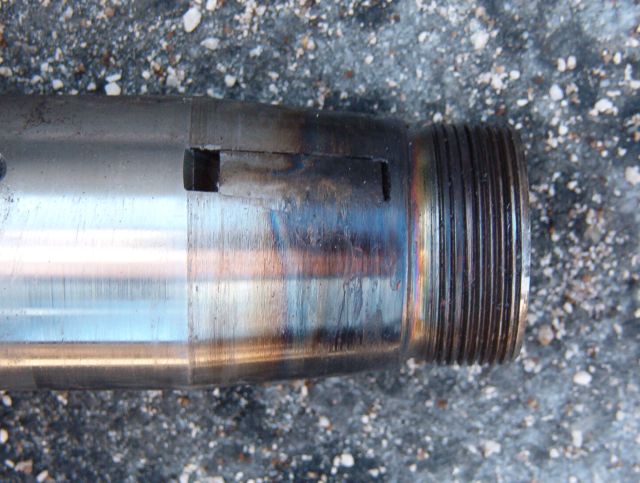

Eccentric shaft rear Flywheel key sheared! |
  |

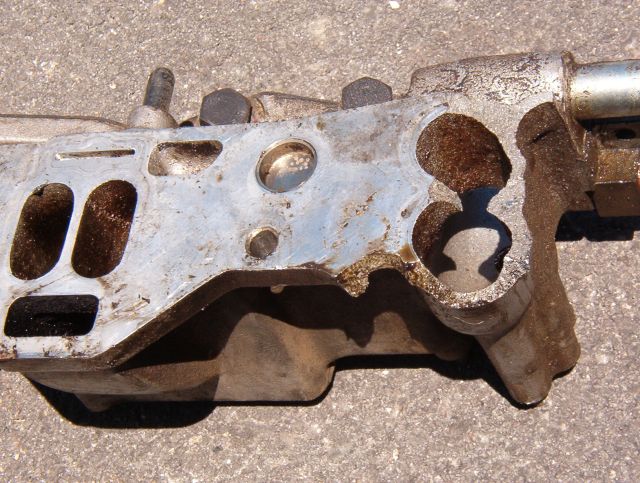

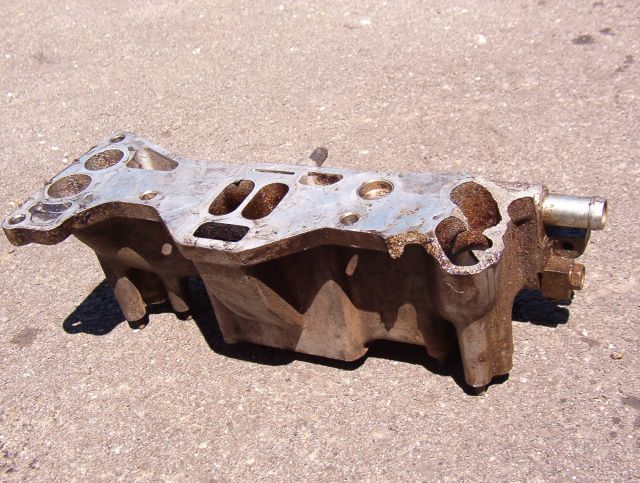

Lower intake manifold cracked Due to rotor housing failure, the lower intake manifold also cracked. |
 |

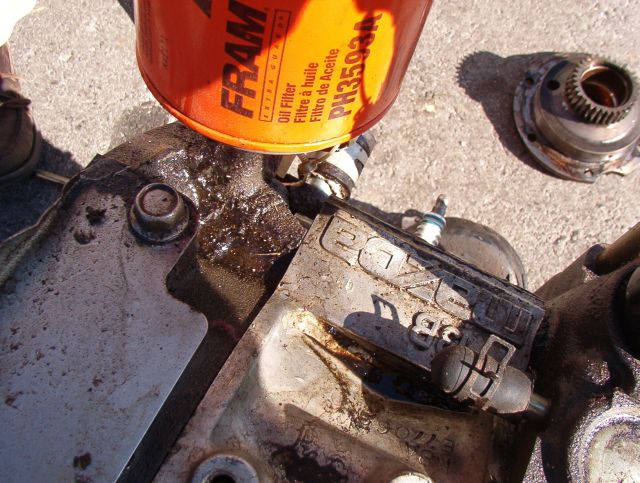

Rotor housing cracked Dowel pin nearest oil filter exposed. |
 |
Rotor housing cracked Damage is obvious. |
 |

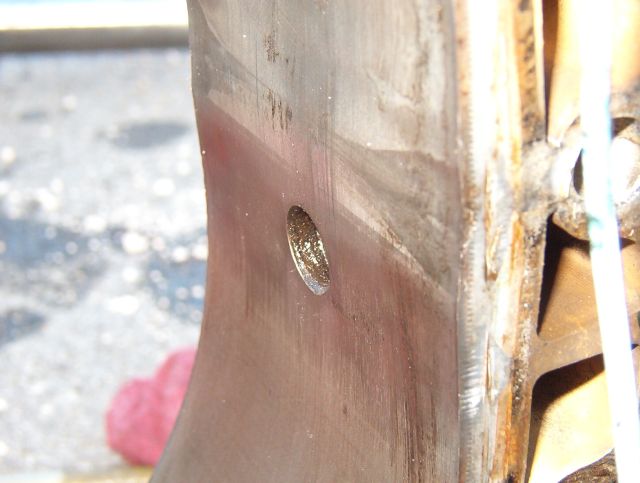

Rotor housing inner surface scarred Due to contact of rotor with rotor housing, the "points" of the rotor housing sides are damaged. |
      |

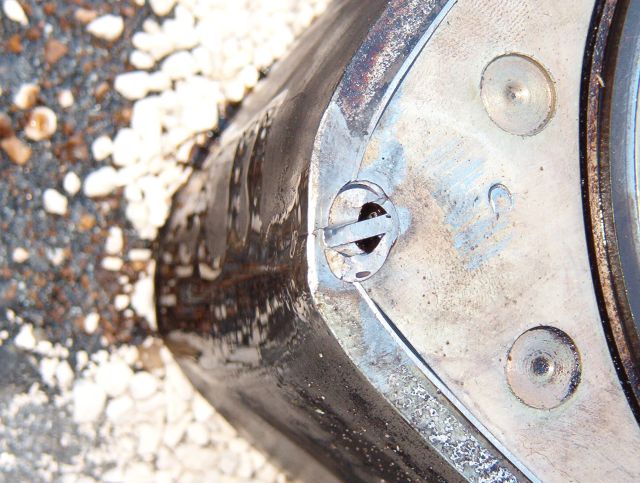

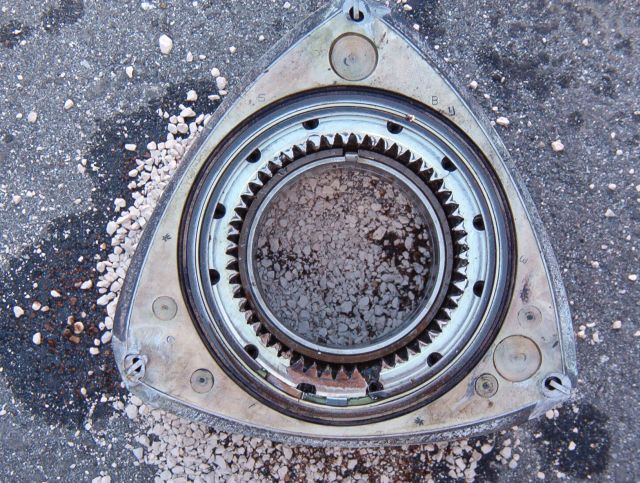

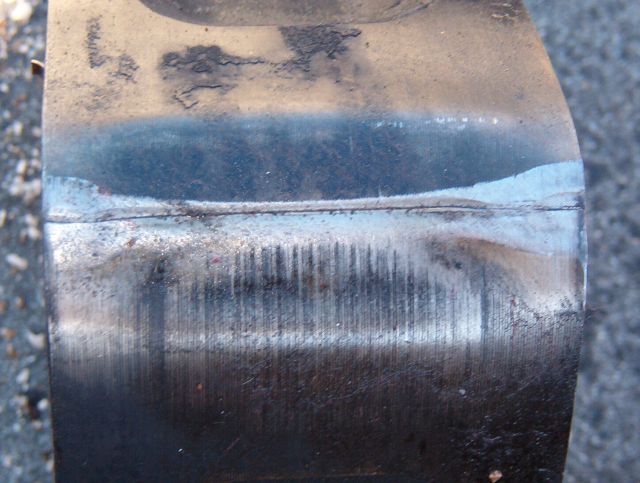

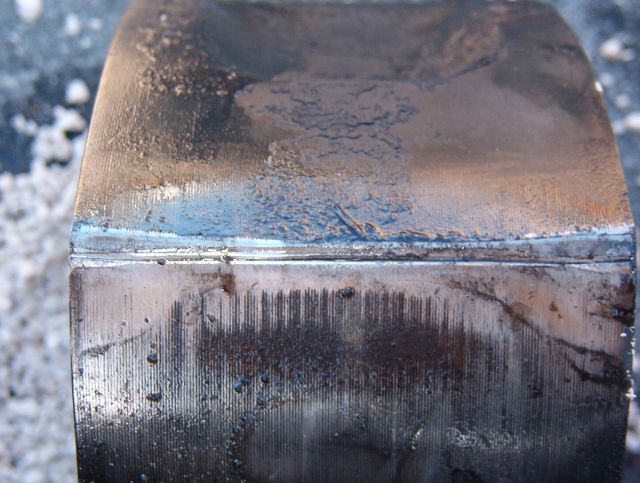

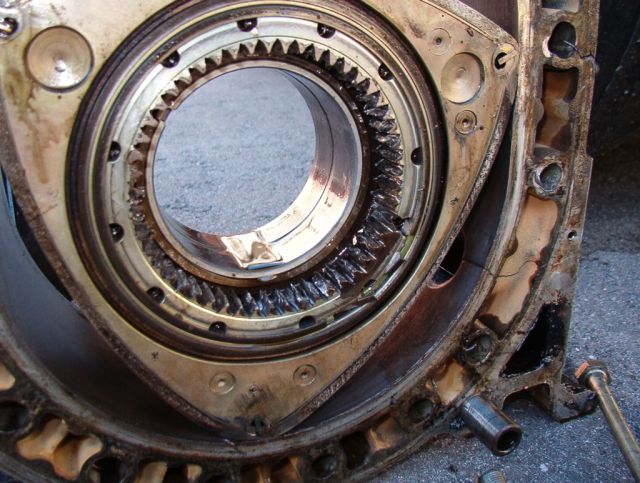

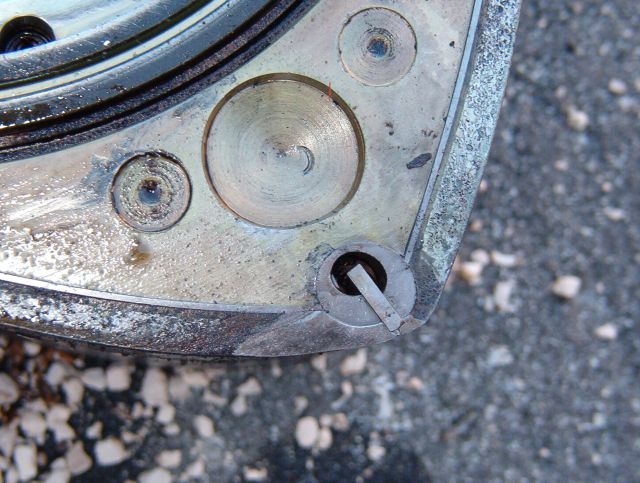

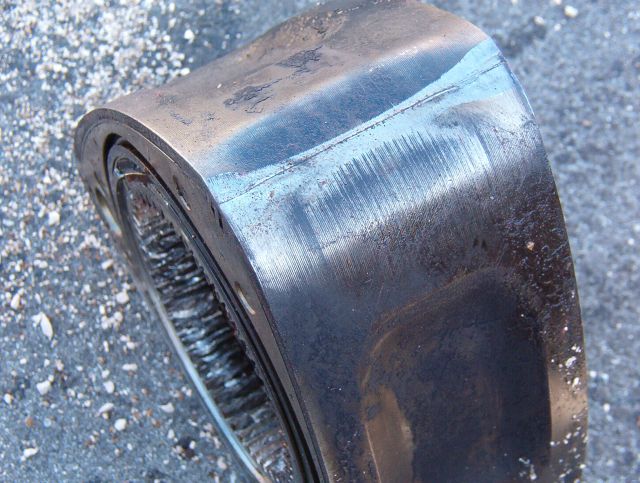

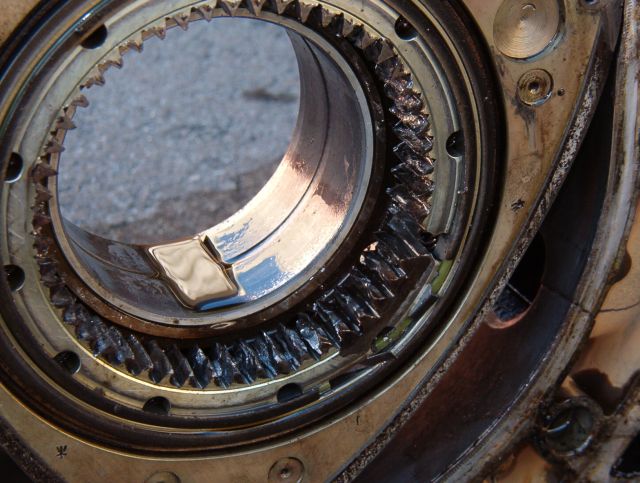

Rotors damaged Rotor apex seal tips contacted on rotor housing, folding the tips over. Rotor gears are also chipped and damaged. |
 |

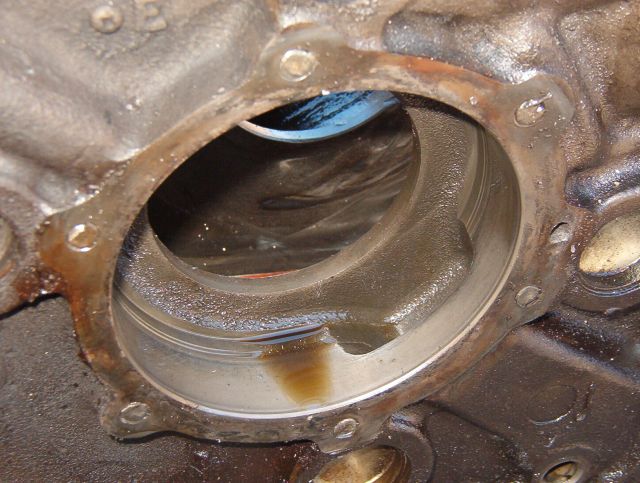

Rear side housing sheared stationary gear Rear stationary gear sheared all 6 bolts. Dowel position pin missing. |
 |

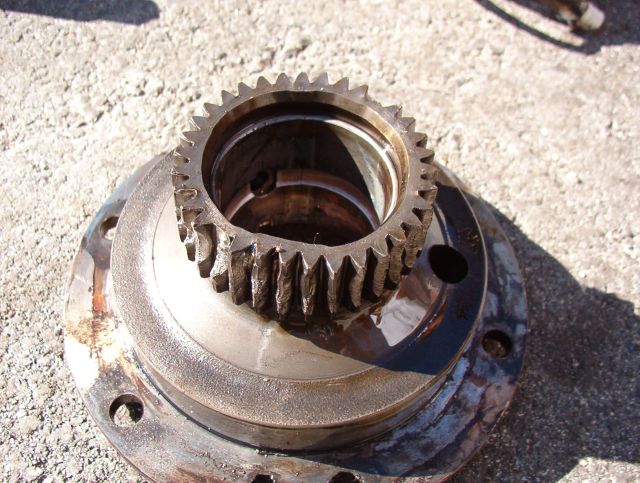

Stationary gear damaged Extreme damage to stationary gear - chipped gear teeth. |
 |

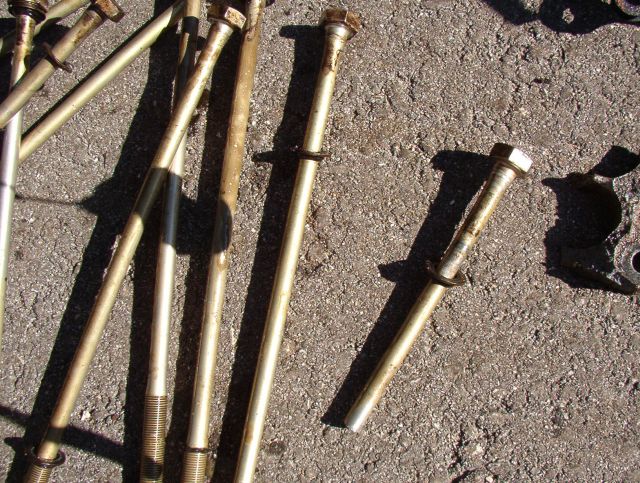

Tension bolts damaged Some tension bolts sheared. |
